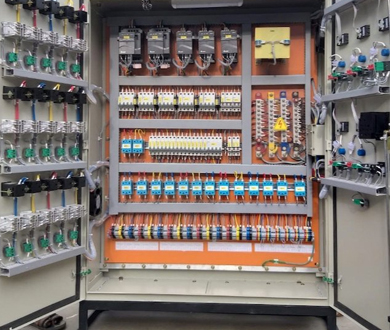

AC Drive Panels, also known as Variable Frequency Drive (VFD) Panels, play a crucial role in controlling the speed and torque of electric motors in various applications. These panels are commonly used in power systems to improve energy efficiency, reduce maintenance costs, and enhance overall system performance.

Components:

Inverter: Converts fixed-frequency AC power to variable-frequency AC power.
Rectifier: Converts AC power to DC power for the inverter.
Control unit: Manages the operation of the drive.
Human Machine Interface (HMI): Touchscreen or display for user interaction.
Protection devices: Overload protection, overvoltage protection, etc.
Communication interfacesConnectivity options for integration with the BSNL power network.
